[JAVA][Kotlin] MVVM 패턴 으로 RecyclerView 만들기

MVVM 패턴

액티비티에 기능을 붙이다보면 액티비티가 무거워지거나 혹은 종속성이 너무 강해 테스트가 힘들고 유지보수가 어려워집니다. 이런 고민 때문에 MVVM 패턴이 등장했다. MVVM은 View - ViewModel - Model을 이용해 각각의 역할을 분리하여 가독성과 재사용성을 높인 디자인 패턴입니다.

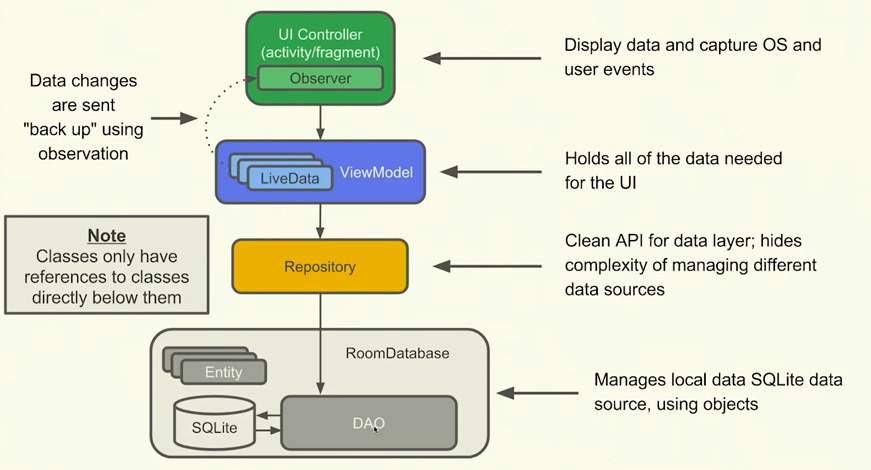

안드로이드 아키텍쳐 컴포넌트 ( Android Architecture Components, AAC )

안드로이드 아키텍쳐 컴포넌트는 앱 구조를 더 튼튼하고, 테스트에 용이하고, 유지 보수성이 뛰어나게 만들어 주는 라이브러리 모음이다. 아키텍쳐 컴포턴트에서는 조금 더 모듈화된 코딩을 돕기 위해 Databinding, LiveData, ViewModel 등의 유용한 라이브러리를 제공하며, 이러한 라이브러리의 모음은 MVVM 패턴의 구조의 설계에 최적화되어 있다.







1. Dependency 추가

- Kapt : Kotlin에서 Java의 Glide나 Dagger의 Annotation Processing을 사용하기 위한 플러그인

apply plugin: 'kotlin-kapt'
apply plugin: 'kotlin-android-extensions'

Room, LiveData 라이브러리를 사용하기위해 dependency를 추가한다.



RecyclerView, CardView도 추가한다.

dependencies {
    // room
    implementation 'android.arch.persistence.room:runtime:1.1.1'
    kapt 'android.arch.persistence.room:compiler:1.1.1'

    // livedata
    implementation 'android.arch.lifecycle:extensions:1.1.1'
    kapt 'android.arch.lifecycle:compiler:1.1.1'

    // recyclerview, cardview
    implementation "androidx.recyclerview:recyclerview:1.2.1"
    implementation "androidx.cardview:cardview:1.0.0"
}



2. Room생성 (Entity, DAO, Database)

Contact라는 data class를 만들고 상단에 @Entity 속성을 주어 Entity를 만들었습니다.

android.arch.persistence.room를 import하게 됩니다.



Contact.kt

@Entity(tableName = "contact")
data class Contact(
    @PrimaryKey(autoGenerate = true)
    var id: Long?,

    @ColumnInfo(name = "name")
    var name: String,

    @ColumnInfo(name = "number")
    var number: String,

    @ColumnInfo(name = "initial")
    var initial: Char
) {
    constructor() : this(null, "", "", '\u0000')
}



기본키가 되는 id는 @PrimaryKey로 지정하고, null일 경우엔 자동으로 생성되도록 (autoGenerate = true) 속성을 주었습니다.

나머지 칼럼엔 @ColumnInfo를 통해 칼럼명을 지정해주었지만, 칼럼명을 변수명과 같이 쓰려면 생략이 가능합니다.



ContactDao.kt

@Dao
interface ContactDao {

    @Query("SELECT * FROM contact ORDER BY name ASC")
    fun getAll(): LiveData<List<Contact>>

    @Insert(onConflict = OnConflictStrategy.REPLACE)
    fun insert(contact: Contact)

    @Delete
    fun delete(contact: Contact)

}



ContactDatabase.kt

@Database(entities = [Contact::class], version = 1)
abstract class ContactDatabase: RoomDatabase() {

    abstract fun contactDao(): ContactDao

    companion object {
        private var INSTANCE: ContactDatabase? = null

        fun getInstance(context: Context): ContactDatabase? {
            if (INSTANCE == null) {
                synchronized(ContactDatabase::class) {
                    INSTANCE = Room.databaseBuilder(context.applicationContext,
                         ContactDatabase::class.java, "contact")
                        .fallbackToDestructiveMigration()
                        .build()
                }
            }
            return INSTANCE
        }
    }

}



3. Repository 생성

ContactRepository.kt

class ContactRepository(application: Application) {

    private val contactDatabase = ContactDatabase.getInstance(application)!!
    private val contactDao: ContactDao = contactDatabase.contactDao()
    private val contacts: LiveData<List<Contact>> = contactDao.getAll()

    fun getAll(): LiveData<List<Contact>> {
        return contacts
    }

    fun insert(contact: Contact) {
        try {
            val thread = Thread(Runnable {
                contactDao.insert(contact) })
            thread.start()
        } catch (e: Exception) { }
    }

    fun delete(contact: Contact) {
        try {
            val thread = Thread(Runnable {
                contactDao.delete(contact)
            })
            thread.start()
        } catch (e: Exception) { }
    }

}



 Database, Dao, contacts를 각각 초기화 해줍니다.

그리고 ViewModel에서 DB에 접근을 요청할 때 수행할 함수를 만들어둡니다.

주의할 점은 Room DB를 메인 스레드에서 접근하려 하면 크래쉬가 발생합니다.





4. ViewModel 생성

class ContactViewModel(application: Application) : AndroidViewModel(application) {

    private val repository = ContactRepository(application)
    private val contacts = repository.getAll()

    fun getAll(): LiveData<List<Contact>> {
        return this.contacts
    }

    fun insert(contact: Contact) {
        repository.insert(contact)
    }

    fun delete(contact: Contact) {
        repository.delete(contact)
    }
}



5. MainActivity

class MainActivity : AppCompatActivity() {

    private lateinit var contactViewModel: ContactViewModel

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        contactViewModel = ViewModelProviders.of(this).get(ContactViewModel::class.java)
        contactViewModel.getAll().observe(this, Observer<List<Contact>> { contacts ->
                // Update UI
            })
    }

}



6. RecyclerView 설정

item_contact.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.v7.widget.CardView
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_margin="4dp"
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools">

    <android.support.constraint.ConstraintLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <TextView
            android:layout_width="50dp"
            android:layout_height="wrap_content"
            android:id="@+id/item_tv_initial"
            android:textSize="30dp"
            android:padding="4dp"
            android:background="@android:color/darker_gray"
            android:layout_marginTop="16dp"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            android:layout_marginStart="16dp"
            tools:text="H"
            android:gravity="center"
            app:layout_constraintBottom_toBottomOf="parent"
            android:layout_marginBottom="16dp"/>

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/item_tv_name"
            android:textSize="20dp"
            android:textStyle="bold"
            app:layout_constraintStart_toEndOf="@+id/item_tv_initial"
            android:layout_marginStart="16dp"
            tools:text="Hello Someone"
            android:layout_marginTop="8dp"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toTopOf="@+id/item_tv_number"/>

        <TextView
            android:id="@+id/item_tv_number"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="4dp"
            app:layout_constraintTop_toBottomOf="@+id/item_tv_name"
            app:layout_constraintStart_toStartOf="@+id/item_tv_name"
            android:layout_marginBottom="8dp"
            app:layout_constraintBottom_toBottomOf="parent"
            tools:text="999-888-777"/>
    </android.support.constraint.ConstraintLayout>

</android.support.v7.widget.CardView>



activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Hello MVVM!"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        android:layout_marginTop="16dp"
        android:id="@+id/textview"/>

    <android.support.v7.widget.RecyclerView
        android:layout_width="0dp"
        android:layout_height="0dp"
        android:layout_marginTop="16dp"
        app:layout_constraintTop_toBottomOf="@+id/textview"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        android:id="@+id/main_recycleview"
        tools:listitem="@layout/item_contact"
        app:layout_constraintBottom_toTopOf="@+id/main_button"/>

    <Button
        android:text="Add"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:id="@+id/main_button"
        android:layout_marginBottom="8dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintHorizontal_bias="0.5"
        app:layout_constraintEnd_toEndOf="parent"
        android:layout_marginStart="8dp"
        android:layout_marginEnd="8dp"/>

</android.support.constraint.ConstraintLayout>



ContactAdapter.kt

class ContactAdapter(val contactItemClick: (Contact) -> Unit, val contactItemLongClick: (Contact) -> Unit)
    : RecyclerView.Adapter<ContactAdapter.ViewHolder>() {
    private var contacts: List<Contact> = listOf()

    override fun onCreateViewHolder(parent: ViewGroup, i: Int): ViewHolder {
        val view = LayoutInflater.from(parent.context).inflate(R.layout.item_contact, parent, false)
        return ViewHolder(view)
    }

    override fun getItemCount(): Int {
        return contacts.size
    }

    override fun onBindViewHolder(viewHolder: ViewHolder, position: Int) {
        viewHolder.bind(contacts[position])
    }

    inner class ViewHolder(itemView: View): RecyclerView.ViewHolder(itemView) {
        private val nameTv = itemView.findViewById<TextView>(R.id.item_tv_name)
        private val numberTv = itemView.findViewById<TextView>(R.id.item_tv_number)
        private val initialTv = itemView.findViewById<TextView>(R.id.item_tv_initial)

        fun bind(contact: Contact) {
            nameTv.text = contact.name
            numberTv.text = contact.number
            initialTv.text = contact.initial.toString()

            itemView.setOnClickListener {
                contactItemClick(contact)
            }

            itemView.setOnLongClickListener {
                contactItemLongClick(contact)
                true
            }
        }
    }

    fun setContacts(contacts: List<Contact>) {
        this.contacts = contacts
        notifyDataSetChanged()
    }

}



MainActivity.kt (수정)

class MainActivity : AppCompatActivity() {

    private lateinit var contactViewModel: ContactViewModel

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        // Set contactItemClick & contactItemLongClick lambda
        val adapter = ContactAdapter({ contact ->
            // put extras of contact info & start AddActivity
        }, { contact ->
            deleteDialog(contact)
        })

        val lm = LinearLayoutManager(this)
        main_recycleview.adapter = adapter
        main_recycleview.layoutManager = lm
        main_recycleview.setHasFixedSize(true)

        contactViewModel = ViewModelProviders.of(this).get(ContactViewModel::class.java)
        contactViewModel.getAll().observe(this, Observer<List<Contact>> { contacts ->
                adapter.setContacts(contacts!!)
            })
    }

    private fun deleteDialog(contact: Contact) {
        val builder = AlertDialog.Builder(this)
        builder.setMessage("Delete selected contact?")
            .setNegativeButton("NO") { _, _ -> }
            .setPositiveButton("YES") { _, _ ->
                contactViewModel.delete(contact)
            }
        builder.show()
    }
}



activity_add.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".AddActivity">


    <TextView
        android:text="Name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/add_tv_name"
        app:layout_constraintStart_toStartOf="parent"
        android:layout_marginStart="32dp"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintVertical_bias="0.41000003"/>

    <EditText
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:inputType="textPersonName"
        android:ems="10"
        android:id="@+id/add_edittext_name"
        app:layout_constraintBottom_toBottomOf="@+id/add_tv_name"
        app:layout_constraintTop_toTopOf="@+id/add_tv_name"
        app:layout_constraintStart_toEndOf="@+id/add_tv_name"
        android:layout_marginStart="32dp"
        app:layout_constraintEnd_toEndOf="parent"
        android:layout_marginEnd="32dp"/>

    <TextView
        android:text="Number"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/add_tv_number"
        android:layout_marginTop="40dp"
        app:layout_constraintTop_toBottomOf="@+id/add_tv_name"
        app:layout_constraintStart_toStartOf="@+id/add_tv_name"/>

    <EditText
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:ems="10"
        android:id="@+id/add_edittext_number"
        app:layout_constraintStart_toStartOf="@+id/add_edittext_name"
        app:layout_constraintTop_toTopOf="@+id/add_tv_number"
        app:layout_constraintBottom_toBottomOf="@+id/add_tv_number"
        app:layout_constraintEnd_toEndOf="parent"
        android:layout_marginEnd="32dp"
        android:inputType="phone"/>

    <Button
        android:text="done"
        android:layout_width="0dp"
        android:layout_height="49dp"
        android:id="@+id/add_button"
        android:layout_marginBottom="8dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintHorizontal_bias="0.5"
        app:layout_constraintEnd_toEndOf="parent"
        android:layout_marginStart="8dp"
        android:layout_marginEnd="8dp"/>

</android.support.constraint.ConstraintLayout>



AddActivity.kt

class AddActivity : AppCompatActivity() {

    private lateinit var contactViewModel: ContactViewModel
    private var id: Long? = null

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_add)

        contactViewModel = ViewModelProviders.of(this).get(ContactViewModel::class.java)

        // intent null check & get extras
        if (intent != null && intent.hasExtra(EXTRA_CONTACT_NAME) && intent.hasExtra(EXTRA_CONTACT_NUMBER)
            && intent.hasExtra(EXTRA_CONTACT_ID)) {
            add_edittext_name.setText(intent.getStringExtra(EXTRA_CONTACT_NAME))
            add_edittext_number.setText(intent.getStringExtra(EXTRA_CONTACT_NUMBER))
            id = intent.getLongExtra(EXTRA_CONTACT_ID, -1)
        }

        add_button.setOnClickListener {
            val name = add_edittext_name.text.toString().trim()
            val number = add_edittext_number.text.toString()

            if (name.isEmpty() || number.isEmpty()) {
                Toast.makeText(this, "Please enter name and number.", Toast.LENGTH_SHORT).show()
            } else {
                val initial = name[0].toUpperCase()
                val contact = Contact(id, name, number, initial)
                contactViewModel.insert(contact)
                finish()
            }
        }
    }

    companion object {
        const val EXTRA_CONTACT_NAME = "EXTRA_CONTACT_NAME"
        const val EXTRA_CONTACT_NUMBER = "EXTRA_CONTACT_NUMBER"
        const val EXTRA_CONTACT_ID = "EXTRA_CONTACT_ID"
    }
}



MainActivity.kt (최종)

class MainActivity : AppCompatActivity() {

    private lateinit var contactViewModel: ContactViewModel

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        // Set contactItemClick & contactItemLongClick lambda
        val adapter = ContactAdapter({ contact ->
            val intent = Intent(this, AddActivity::class.java)
            intent.putExtra(AddActivity.EXTRA_CONTACT_NAME, contact.name)
            intent.putExtra(AddActivity.EXTRA_CONTACT_NUMBER, contact.number)
            intent.putExtra(AddActivity.EXTRA_CONTACT_ID, contact.id)
            startActivity(intent)
        }, { contact ->
            deleteDialog(contact)
        })

        val lm = LinearLayoutManager(this)
        main_recycleview.adapter = adapter
        main_recycleview.layoutManager = lm
        main_recycleview.setHasFixedSize(true)

        contactViewModel = ViewModelProviders.of(this).get(ContactViewModel::class.java)
        contactViewModel.getAll().observe(this, Observer<List<Contact>> { contacts ->
                adapter.setContacts(contacts!!)
            })

        main_button.setOnClickListener {
            val intent = Intent(this, AddActivity::class.java)
            startActivity(intent)
        }
    }

    private fun deleteDialog(contact: Contact) {
        val builder = AlertDialog.Builder(this)
        builder.setMessage("Delete selected contact?")
            .setNegativeButton("NO") { _, _ -> }
            .setPositiveButton("YES") { _, _ ->
                contactViewModel.delete(contact)
            }
        builder.show()
    }
}
